Zonea MIDI channels

subset

In Bitwig, I have a couple of samplers/drum machines that were set to receive input on different CopperLan MIDI channels, and in Chameleon, the relevant buttons were sending on those channels, e.g. button Tom1 sends a note on MIDI channel 5, button Crash1 sends a note on MIDI channel 2.

But in Zonea, there is no way to select a MIDI channel in Bitwig, so both the Toms and Crash, which are on different MIDI channels, both receive notes and play at the same time.

How can I select and receive on specific MIDI channels in Bitwig using the Zonea driver?

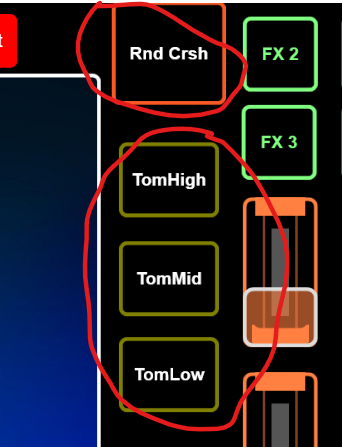

Zonea crash/tom buttons:

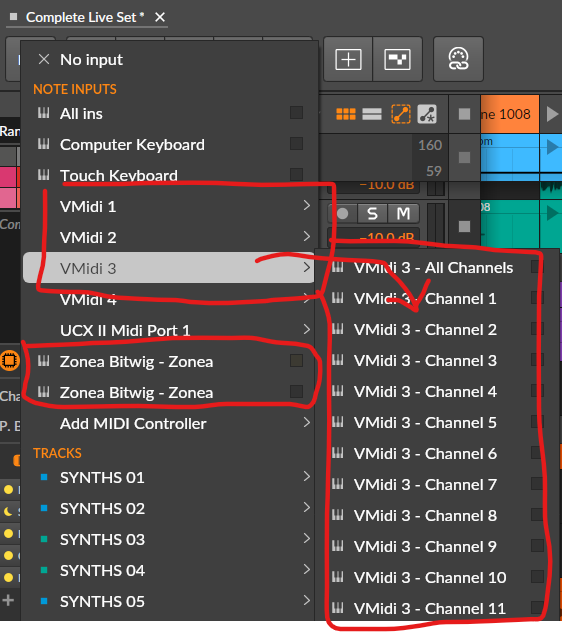

Bitwig MIDI driver/channel selection:

PabloMartin

Not your template: the per-button channel in Zonea is fine. Bitwig hides a port's channels while a controller script is using it, and the current Zonea Bitwig script exposes a single input carrying all channels. Fixed in 3.1.10 (coming shortly): a "Note inputs" setting on the Zonea Bitwig controller lets you switch to one input per channel, so a track can take "Zonea Ch 5" like "Channel 5" on a plain port. Until then, removing the Zonea Bitwig controller brings the channel menu back, at the cost of the Clip Grid and Device Panel. I back ASAP with new version 3.1.10.

subset

Thanks, I can wait till 3.1.10 comes out (unless it's months away 🙂 )

PabloMartin

Download version 3.1.11. If you encounter any problems, please report them here.

subset

Hi, I still have the same problem where I cannot select a MIDI channel to receive from.
In the below you can see the UCX II has multiple channels I can select, but the Zonea input drivers do not..

subset

Disregard, found it, and now working as expected, thanks! 🙂

PabloMartin

: ) the home page is waiting for one of your performances : )

subset

I've got an idea for the song - just need to get familiar with the new clip launcher 🙂
